Identifying the root cause of incidents within a system is critical to preventing recurrence and ensuring long-term stability. Root Cause Analysis (RCA) is a process that helps teams investigate the underlying reasons for system failures, operational disruptions, or performance issues.

Instead of addressing only the symptoms of the problem, RCA aims to pinpoint the fundamental cause, allowing for more effective and lasting solutions. Various frameworks are used to conduct RCA, each offering unique approaches to understanding what went wrong and how to avoid similar issues in the future.

These frameworks, from the simple "5 Whys" technique to more structured models like Failure Mode and Effects Analysis (FMEA), guide teams through systematic processes to uncover and address the root cause of incidents.

In this guide, we’ll explore some of the most popular RCA frameworks organizations use to diagnose issues, learn from them, and improve their systems and processes over time.

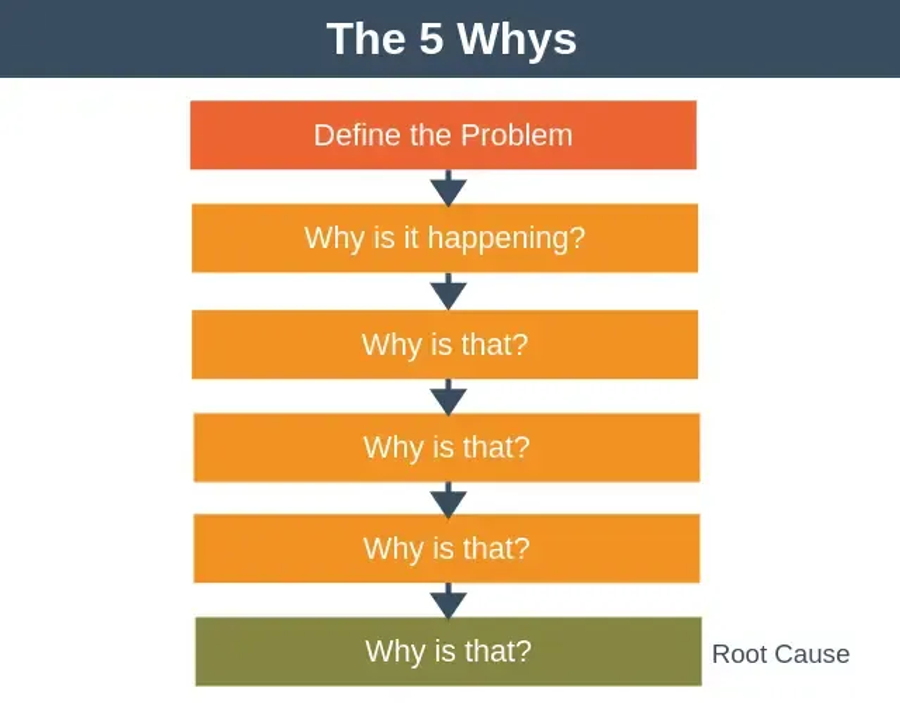

The "5 Whys" technique is a simple yet powerful method used to uncover the root cause of a problem by repeatedly asking the question "Why?" five times or until the real underlying issue is identified.

This method helps teams move beyond surface-level symptoms to determine the core reason behind an incident, enabling effective solutions to prevent recurrence.

Process:

1. Define the problem: Start by clearly identifying the issue at hand (e.g., "The server crashed").
2. Ask 'Why?' Begin by asking why the issue occurred (e.g., "Why did the server crash?" → "Because it ran out of memory").
3. Continue asking 'Why?' For each answer, ask why that situation occurred (e.g., "Why did it run out of memory?" → "Because a process consumed all available memory").
4. Repeat this process: Keep asking "Why?" until you reach the root cause (typically within five iterations, though it may take more or fewer).
5. Identify the root cause: Once you have reached the fundamental cause of the problem, you can address it to prevent future incidents.

Example:

• Problem: The application crashed.

Image Source

• Why? → The server ran out of memory.
• Why? → A memory-intensive process consumed all available memory.
• Why? → The process wasn't limited to resource usage.
• Why? → There was no resource monitoring in place.
• Why? → The monitoring system was not configured properly.
• Root Cause: The monitoring system was not configured to alert for memory usage.

By identifying the root cause, teams can implement solutions such as configuring proper monitoring or setting limits on resource usage to prevent similar incidents in the future.

The 5 Whys technique is effective for quickly uncovering simple problems and can be easily implemented across teams.

Want to Read More Root Cause Analysis: The 5-Why RCA Framework? Read Our Full Article!

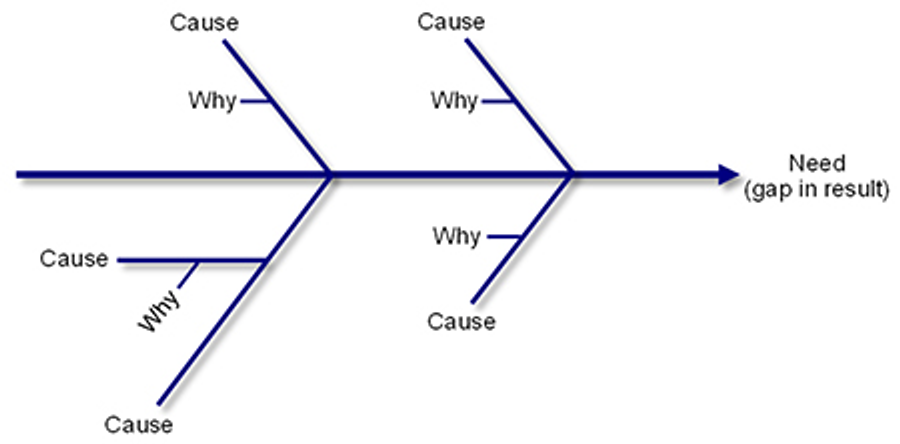

The Fishbone Diagram, also known as the Ishikawa or Cause-and-Effect Diagram, is a visual tool used to systematically analyze the root causes of a problem by categorizing potential causes.

[Image Source](https://managing-ils-reporting.itcilo.org/en/tools/root-cause-analysis-the-fishbone-diagramme/#:~:text=The fishbone technique is easy,factors influencing the problem%2Fneed.)

This method is particularly helpful when an issue involves multiple contributing factors, allowing teams to break down the causes into logical categories like people, processes, technology, and environment.

Process:

1. Identify the problem: Begin by clearly defining the issue and writing it at the head of the diagram (the "fish head").
2. Draw the main branches: Draw major branches extending from the head, each representing a category of possible causes (e.g., people, software, hardware, process, environment).
3. Brainstorm potential causes: For each category, brainstorm and list possible causes on smaller branches coming off the main ones.
4. Analyze the causes: Examine the causes within each category to identify which ones are contributing to the problem and pinpoint the root cause.
5. Find the root cause: Once you have explored all possible factors, evaluate which cause(s) are most likely driving the issue and take steps to resolve it.

Example:

Consider an application crash. The causes could be visualized across the Fishbone Diagram's branches:

• Software: Bugs, configuration issues, outdated software versions.
• Hardware: Insufficient server capacity, overheating, hardware failures.
• People: Operator errors, lack of training, miscommunication.
• Process: Poor deployment procedures, inadequate testing, slow response to alerts.
• Environment: Power outages, network issues, and environmental changes in the data center.

By organizing the causes into these categories, the Fishbone Diagram allows teams to methodically explore the possible factors affecting the incident and focus their efforts on identifying the root cause.

This method provides a holistic view, making it easier to address complex, multi-factor issues.

Please read this article to know more about it.

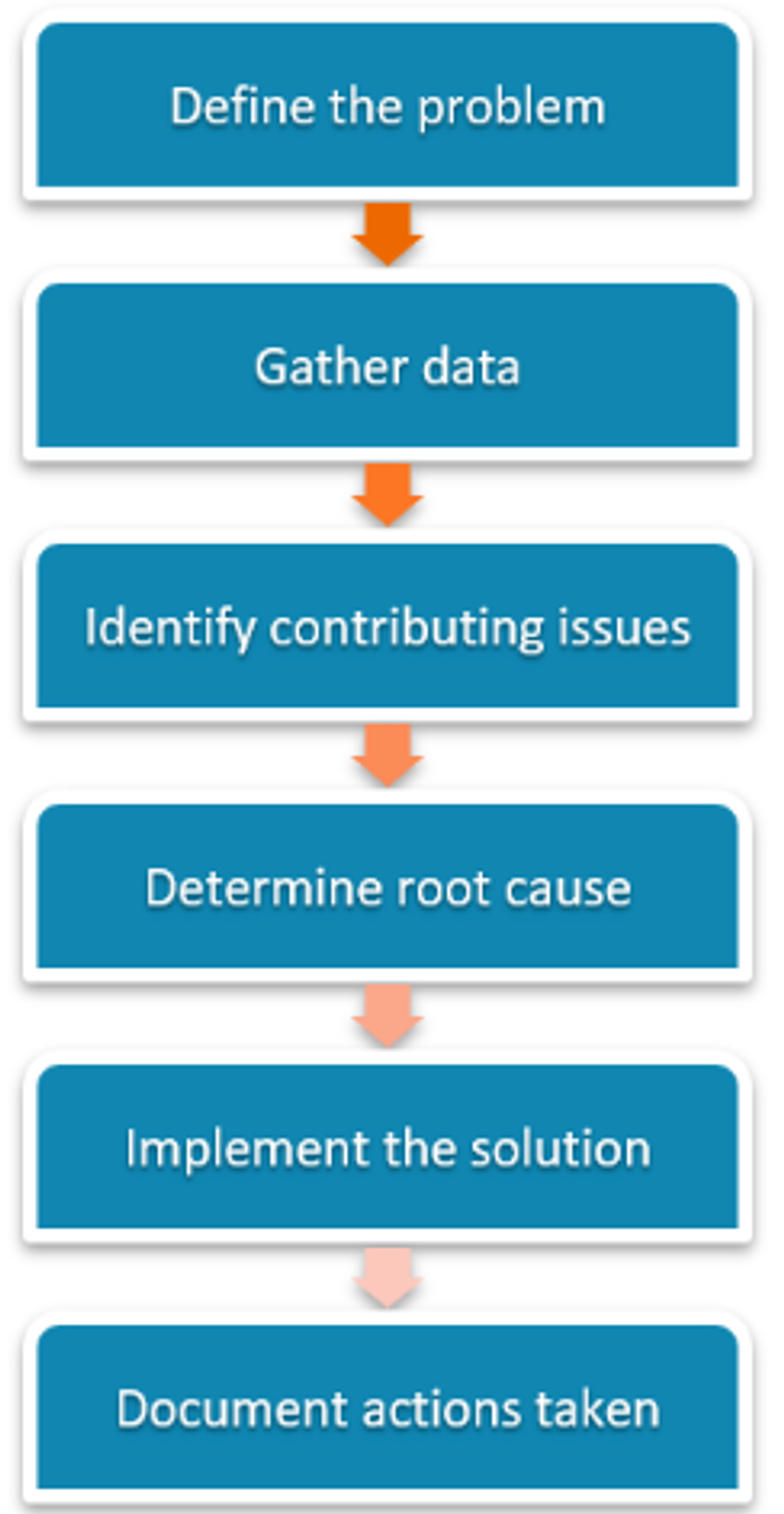

Root Cause Analysis (RCA) is a comprehensive and structured approach used to identify not just the root cause of an incident, but also the contributing factors that led to the problem.

Image Source

Unlike methods that focus solely on the primary cause, RCA dives deeper into understanding how different factors (technical, human, or environmental) interplayed to create the issue.

This process is essential for developing solutions that prevent future occurrences by addressing both the direct cause and the contributing conditions.

Process:

1. Gather data about the incident:
2. Collect as much information as possible regarding the incident. This can include system logs, user reports, monitoring data, and any relevant performance metrics. The goal is to get a clear, comprehensive view of the problem.
3. Analyze the timeline and symptoms:
4. Reconstruct the sequence of events leading up to the incident by reviewing the collected data. Look for patterns, symptoms, and anomalies that occurred before, during, and after the incident.
5. Identify contributing factors:
6. Consider all the factors that could have contributed to the incident. This might include software bugs, misconfigurations, infrastructure issues, lack of adequate monitoring, or human error. Understanding these factors is key to avoiding the same problem in the future.
7. Find the root cause:
8. Pinpoint the root cause by tracing the chain of events back to the initial issue that triggered the incident. Often, this will be the first issue in a series of failures or oversights.
9. Recommend solutions:
10. Once the root cause and contributing factors are identified, recommend corrective actions to address them. This could include code fixes, infrastructure changes, process improvements, or additional training for team members.

Example:

Consider a database outage. RCA could reveal the following contributing factors:

• High CPU usage is caused by unoptimized queries.
• Unoptimized queries lead to resource exhaustion.
• Server misconfiguration prevents the system from scaling properly.

Upon deeper analysis, the root cause could be a misconfigured resource limit in the database, which failed to handle the increased load. To resolve the issue, the team could recommend optimizing the queries and adjusting the resource limits to prevent future overloads.

By using RCA, teams can develop a more thorough understanding of incidents and implement comprehensive solutions that target both immediate and underlying problems, ultimately improving system reliability and reducing the likelihood of recurring issues.

Read this article to know more about RCA.

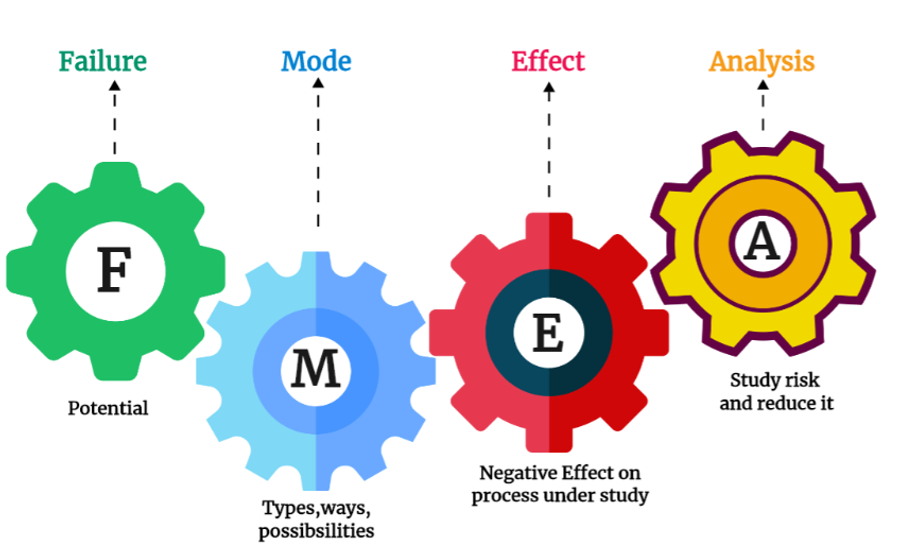

Failure Mode and Effects Analysis (FMEA) is a proactive method traditionally used to predict potential failure points in a system before they happen. Although it is generally used during the design or development phase, it can also be applied after an incident to understand how components or processes failed and assess each failure's impact.

Image Source

FMEA helps teams prioritize risks based on their likelihood and severity, ensuring that the most critical issues are addressed first.

Process:

1. List all components or processes involved in the system:
2. Begin by identifying every key component or process within the system. This could include hardware, software, network infrastructure, or operational workflows.
3. Analyze possible failure modes:
4. For each component or process, evaluate how it could potentially fail. These failure modes could range from hardware malfunctions to human error or software bugs.
5. Assess the impact of each failure mode:
6. Determine the possible effects of each failure mode, such as how it would impact users or cause system downtime. Consider the worst-case scenario for each failure to assess its potential damage.
7. Prioritize failure modes based on likelihood and impact:
8. Rank each failure mode by its likelihood of occurring and its potential impact. This allows teams to focus on preventing or addressing the highest-risk issues first.
9. Develop corrective actions for the highest-priority risks:
10. Once the most significant failure modes have been identified and prioritized, devise corrective actions to mitigate them. These actions may involve adding system redundancy, increasing monitoring, updating configurations, or introducing more robust failover mechanisms.

Example:

In a cloud-based service, FMEA might reveal the following risks:

• Server crashes due to excessive traffic.
• Database failures from resource limits being exceeded.
• Network bottlenecks from a lack of bandwidth or misconfiguration.

To mitigate these risks, the team might take corrective measures such as:

• Adding redundancy to the servers to handle increased traffic.
• Setting appropriate resource limits for databases and scaling them accordingly.
• Monitoring network performance and configuring failover options for high-traffic periods.

By using FMEA, teams can take a proactive approach to incident prevention, ensuring that they are prepared for potential failures and minimizing the risk of critical system breakdowns.

Want to know more about FEMA? Read this article.

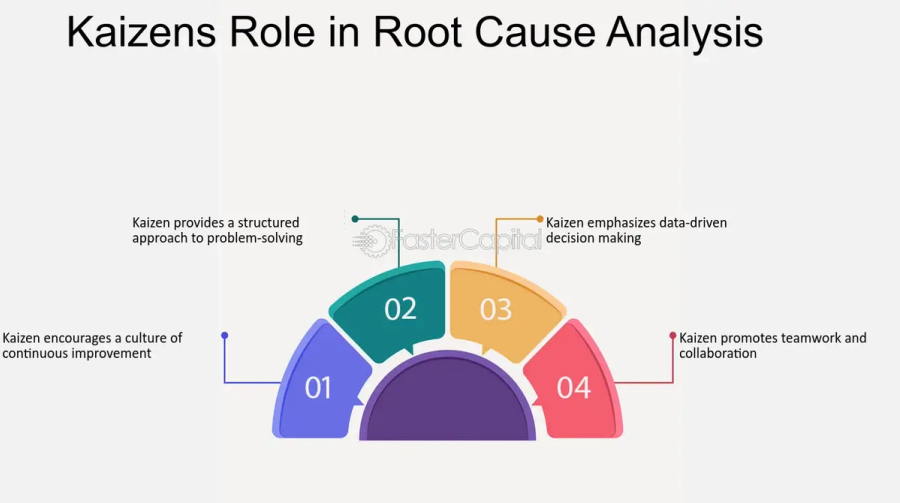

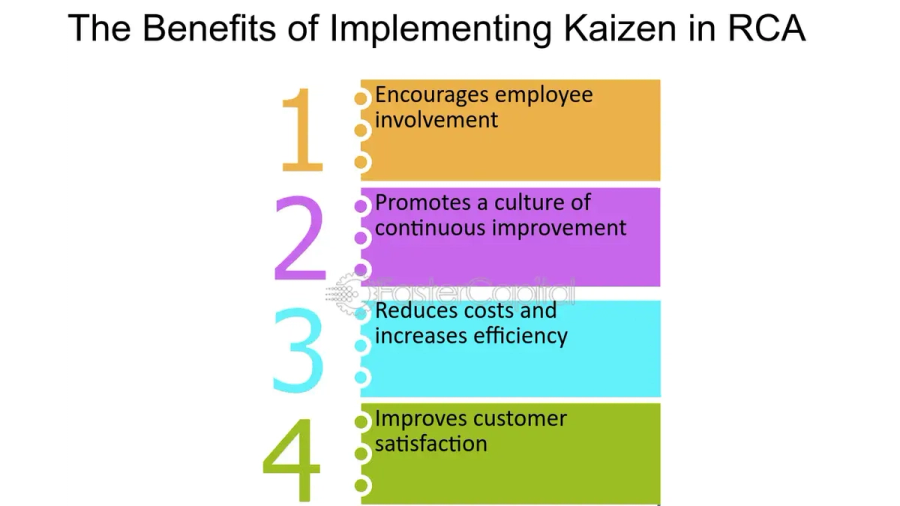

Kaizen is a Japanese philosophy focused on continuous, incremental improvement. In the context of incident management, it involves making small, continuous changes after each incident to enhance processes, tools, and team behavior.

Image Sources

Instead of implementing large, drastic changes, Kaizen promotes gradual improvements that, over time, lead to significant advancements in efficiency and performance.

Process:

1. Document what went wrong after an incident:
2. Once an incident has been resolved, thoroughly document what happened, including the root cause, contributing factors, and the response process. This step ensures that everyone on the team understands what went wrong and how it was addressed.
3. Implement small, incremental changes:
4. Based on the lessons learned, make small adjustments to the team's processes, tools, or behaviors. These changes could include updating runbooks, adjusting monitoring metrics, or refining response protocols.
5. Track the outcomes of these changes:
6. Monitor how the changes affect future incident responses. Are incidents being resolved faster? Is there less downtime? Keep a close eye on the results to determine if the improvements are making a measurable difference.
7. Review regularly and refine the process:
8. Continuous improvement requires ongoing evaluation. Regularly review the effectiveness of the changes and look for new areas where further enhancements can be made. The Kaizen process is cyclical, ensuring that the team is always striving to improve incident response.

Example:

After experiencing an outage, a DevOps team might realize that they lacked sufficient visibility into certain system metrics. To prevent this from happening again, they could:

• Add a new monitoring metric to better track system health.
• Simplify a deployment script to reduce errors during future deployments.
• Create an incident runbook to guide team members through similar issues more efficiently.

Over time, these small improvements lead to a more streamlined and effective incident response process, reducing downtime and improving overall system reliability.

Read more in this article!

An incident retrospective is a structured team discussion held after an incident has been resolved. It provides a space for reflection on what happened during the incident and identifies opportunities for improvement.

The goal of a retrospective is to ensure continuous learning and to refine processes for faster and more effective responses in the future.

Process:

1. Gather the incident response team:
2. Bring together all the team members who were involved in responding to the incident. This could include engineers, operations staff, and even stakeholders, depending on the scope of the issue.
3. Discuss what went well and what didn’t:
4. Review the incident, focusing on what worked effectively and what challenges were encountered. Highlight areas where the team performed well and discuss any pain points or delays that may have occurred.
5. Identify areas for improvement:
6. Based on the discussion, pinpoint specific actions that can be taken to improve future responses. These may include process changes, tool adjustments, or improved communication strategies.
7. Assign action items:
8. Assign clear responsibilities for implementing the improvements discussed. Make sure each action item has a designated owner to ensure accountability and follow-through.

Example:

After resolving a major service disruption, the team holds a retrospective. During the discussion, they realized that logging was insufficient to identify the issue early, and communication between teams was delayed.

As a result, they decide to:

• Implement more detailed logging to catch similar issues in the future.
• Establish a faster communication protocol between teams during outages.

By regularly conducting retrospectives, teams can continuously improve their incident response processes, reducing the likelihood of recurring issues and minimizing the impact of future incidents.

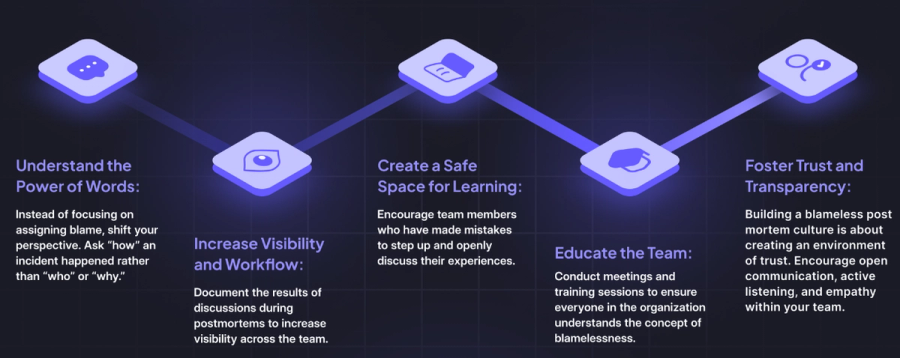

The blameless postmortem is a method designed to foster open communication and learning without assigning blame to any individual or team. It shifts the focus from human error to systemic issues, aiming to identify improvements and prevent future incidents.

Image Source

By removing blame, teams can feel safe in sharing their experiences, leading to better solutions and stronger collaboration.

Process:

1. Review the incident objectively:
2. Begin by analyzing the incident in detail, focusing on what happened, when it happened, and how it unfolded. The key is to discuss the facts without singling out individuals or teams for mistakes.
3. Analyze the sequence of events and decisions made:
4. Break down the timeline of the incident and review the decisions that were made at each step. Look for any patterns or missed opportunities that could have mitigated the impact.
5. Identify system-level issues:
6. Rather than pointing fingers at human error, investigate the broader systemic or procedural issues that contributed to the incident. This could include gaps in processes, unclear communication, or insufficient monitoring.
7. Focus on learning and improving:
8. The ultimate goal of a blameless postmortem is to learn from the incident and implement changes to prevent future occurrences. Emphasize solutions and process improvements, encouraging a growth mindset within the team.

Example:

In a blameless postmortem for a downtime event caused by an incorrect deployment, the focus would be on improving the deployment process rather than blaming the individual who deployed the code.

The team may identify that the deployment pipeline lacks automated checks or clear documentation and decide to implement better safeguards for future releases.

By focusing on systemic improvements and avoiding blame, teams create an environment where they can openly discuss failures, learn from them, and develop stronger incident response strategies.

Read more about Blameless Postmortems from this article.

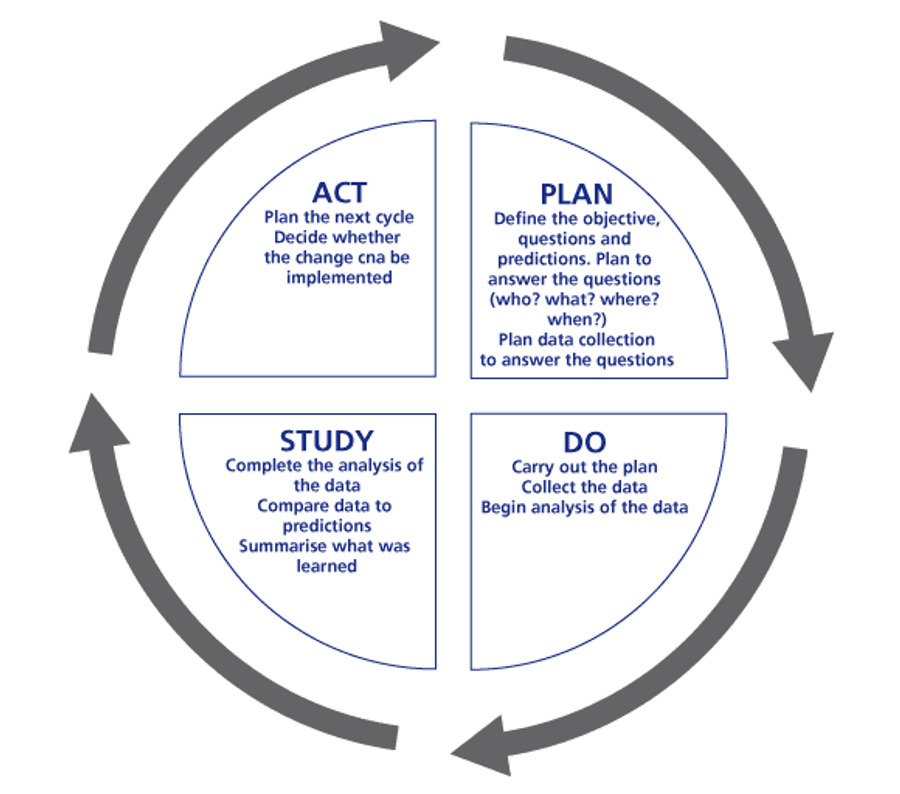

The PDSA cycle is a continuous improvement framework that encourages teams to iteratively test, evaluate, and refine their solutions to improve incident response and overall system performance.

Image Source

By following a structured, cyclic approach, teams can gradually implement and optimize changes, ensuring better long-term results.

Process:

1. Plan:
2. Identify a specific problem or area for improvement, and develop a solution or experiment to address it. This step involves gathering information, setting goals, and outlining how to measure success.
3. Do:
4. Implement the solution on a small scale, such as in a limited environment or pilot test. This allows the team to experiment and collect data without risking larger-scale operations.
5. Study:
6. After implementing the solution, measure its effectiveness by analyzing the results. Compare the outcomes with your goals to assess whether the solution worked as intended, and identify any areas that still need improvement.
7. Act:
8. Based on the results of the study phase, decide whether to adopt the solution more broadly or adjust it before doing so. If the solution was successful, roll it out on a larger scale; if not, refine it and repeat the cycle.

Example:

After noticing frequent delays in alert response times, a team implements a small-scale pilot of a new monitoring system designed to reduce alert noise. Following the test, they measure improvements in response time and evaluate user feedback.

If the pilot proves effective, the team expands the system to cover all production services; if not, they make adjustments and run the cycle again.

By using the PDSA cycle, teams can ensure continuous improvement through thoughtful experimentation, data-driven decisions, and careful scaling of solutions.
